Native DiT runtime

edge-dit.cpp

A lightweight C/C++ inference engine for efficient Diffusion Transformer inference on local and resource-constrained devices. No Python, no PyTorch at runtime — just ggml.

shell

# build (CUDA, NCCL + MPI on by default)
$ git clone --recursive https://github.com/THU-MIG/edge-dit.cpp
$ bash ./scripts/build_cuda.sh

# generate an image
$ ed-cli --diffusion-model flux1-dev -p "a spartan warrior" -o out.png

GitHub Repository Build Guide 4090 Benchmarks

Runtime: C / C++ on ggml
Backends: CUDA, CPU, Vulkan, Metal
Workloads: Image, edit, video
Status: v0.1.0-alpha preview

Showcase

Generated on this engine

Unretouched outputs straight from the benchmark suite. Every image was produced by ed-cli on the models below — captions are the exact prompts.

A red colored car on a forest road — A red colored car.

A side view of an owl sitting in a field.

A confused grizzly bear in calculus class — A photo of a confused grizzly bear in calculus class.

Oil painting portrait of a regal king holding a burger — An oil painting portrait of the regal Burger King posing with a Whopper.

Illustration of a mouse using a mushroom as an umbrella.

A small green elephant standing behind a large red mouse.

A gentlemanly spider with a moustache greeting a grasshopper — A spider with a moustache bidding a gentlemanly grasshopper a good day.

An expressive portrait of a dog — A domesticated carnivorous mammal with a long snout and an acute sense of smell.

What changed most recently

These notes mirror the current README.md timeline and help the homepage feel alive instead of frozen in time.

2026-08-05

RTX 4090 benchmark completed across text-to-image, editing, and video.

2026-07-30

Per-component offload landed with unified semantics for the offload path.

2026-07-29

--auto-fit added for automatic quantization and placement under a VRAM cap.

2026-07-27

Few-step distilled auto-detection and optional SageAttention support were added.

2026-07-23

ed-convert brought offline GGUF quantization with activation-calibrated imatrix.

Project snapshot

What the runtime looks like in practice

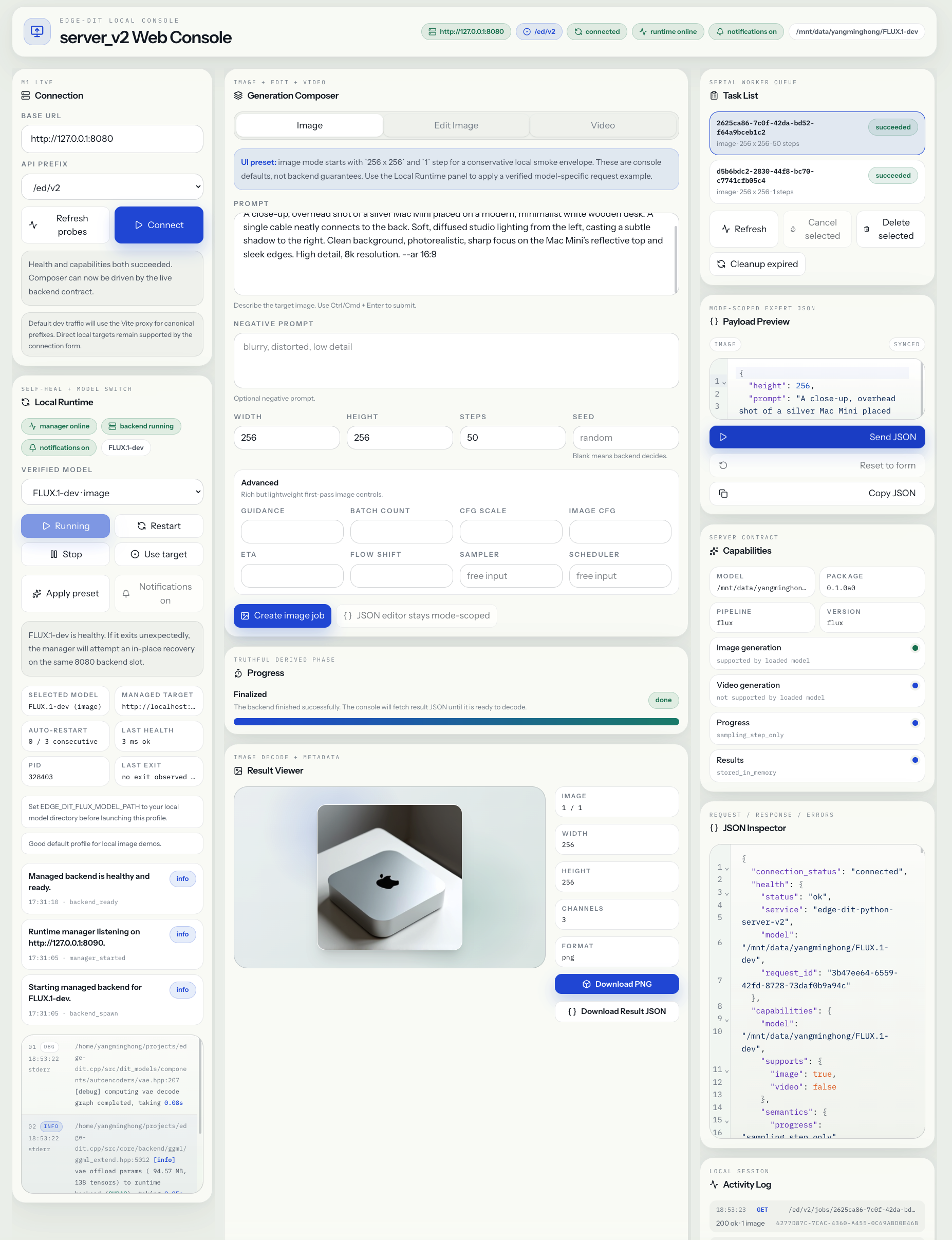

The console screenshot shows the local web UI that rides on top of the same core engine, server, and job flow the rest of the project uses.

Python Server Console overview showing the local web-based control surface — Python Server Console, one of the public surfaces built on the shared runtime.

Why the project feels coherent

One core engine powers the C API, CLI, native server, Python bindings, and Python server console.
Model loading, memory placement, quantization, and device selection are explicit rather than hidden.
Few-step distilled checkpoints are detected automatically and get a shorter default schedule.
Image generation, image editing, and video generation share the same native foundation.

Capabilities

Core strengths at a glance

The page is intentionally compact. The point is to show the project clearly, not to bury it under decorative layers.

Native runtime

Pure C/C++ inference on ggml with no Python or PyTorch required at runtime.

Memory control

--auto-fit, layered offload, per-component offload, and VAE tiling help the engine fit tight VRAM budgets.

Backend spread

CUDA is the first-class path, with CPU, Vulkan, and Metal support for other setups.

Unified surfaces

The same model stack can be reached through the C API, CLI, native server, Python bindings, and Python server.

Interfaces

Public entry points

These are the integration surfaces that matter when you want to script, embed, or expose the runtime through a local service.

Surface	Entry point	What it gives you
CLI	`ed-cli`, `ed-sample`	Direct command-line generation and inspection.
C API	`include/edge-dit.h`	Embed the engine in native C or C++ applications.
Native server	`ed-server`	A small HTTP wrapper around the core runtime.
Python bindings	`edge_dit`	Drive the engine from Python with the same model stack.
Python server console	React UI + runtime manager	Browser-based local control for jobs, logs, and result viewing.

Model scope

Supported families

The homepage keeps the list short and readable, while the repository docs carry the exact checkpoints, formats, and model-specific caveats.

Family	Task	Current status
SD3 / SD3.5	Text-to-image	Supported
FLUX.1	Text-to-image	Supported
FLUX.1-Kontext	Image editing / reference-guided generation	Supported
Qwen-Image	Text-to-image	Supported
Qwen-Image-Edit	Image editing	Supported
Wan 2.1	Video generation	Supported, still being optimized on Vulkan

Performance

Published benchmark snapshots

The numbers below are the most visible cross-system snapshots from the current benchmark notes in the repository.

RTX 4090 snapshot

2026-08-05 and published in performance-4090.md

Model	edge-dit.cpp result
FLUX.1-dev	10,569 ms sampling, 19,112 MiB peak VRAM
SD3 Medium	3,434 ms sampling, 9,147 MiB peak VRAM
FLUX.1-Kontext	24,534 ms sampling, 20,111 MiB peak VRAM
Wan2.1-T2V-1.3B	53,964 ms sampling, 12,176 MiB peak VRAM

H200 snapshot

Measured on 2026-07-13 and published in performance-H200.md

Model	edge-dit.cpp result
FLUX.1-dev	6.645 s load, 10.784 s median
Stable Diffusion 3 Medium	5.840 s load, 4.003 s median
Qwen-Image	11.621 s load, 10.697 s median

Documentation

Jump into the repo without hunting around

These links mirror the parts of the repository people usually want first: build instructions, model scope, CLI usage, API details, and benchmark notes.

Build Setup, backends, dependency notes, and common build failures. Models Supported families, formats, distilled variants, and limitations. CLI Command-line examples for text-to-image, editing, and video. API C API, native server, Python bindings, and Python server surfaces. Benchmarks 4090 and H200 performance notes with speed and VRAM tables.
